Solar Panel Charge Controller & Regulator 12V/24V auto dual USB 30A Battery PWM In China Cheap Pice

From Great Range Products
12 Month warranty

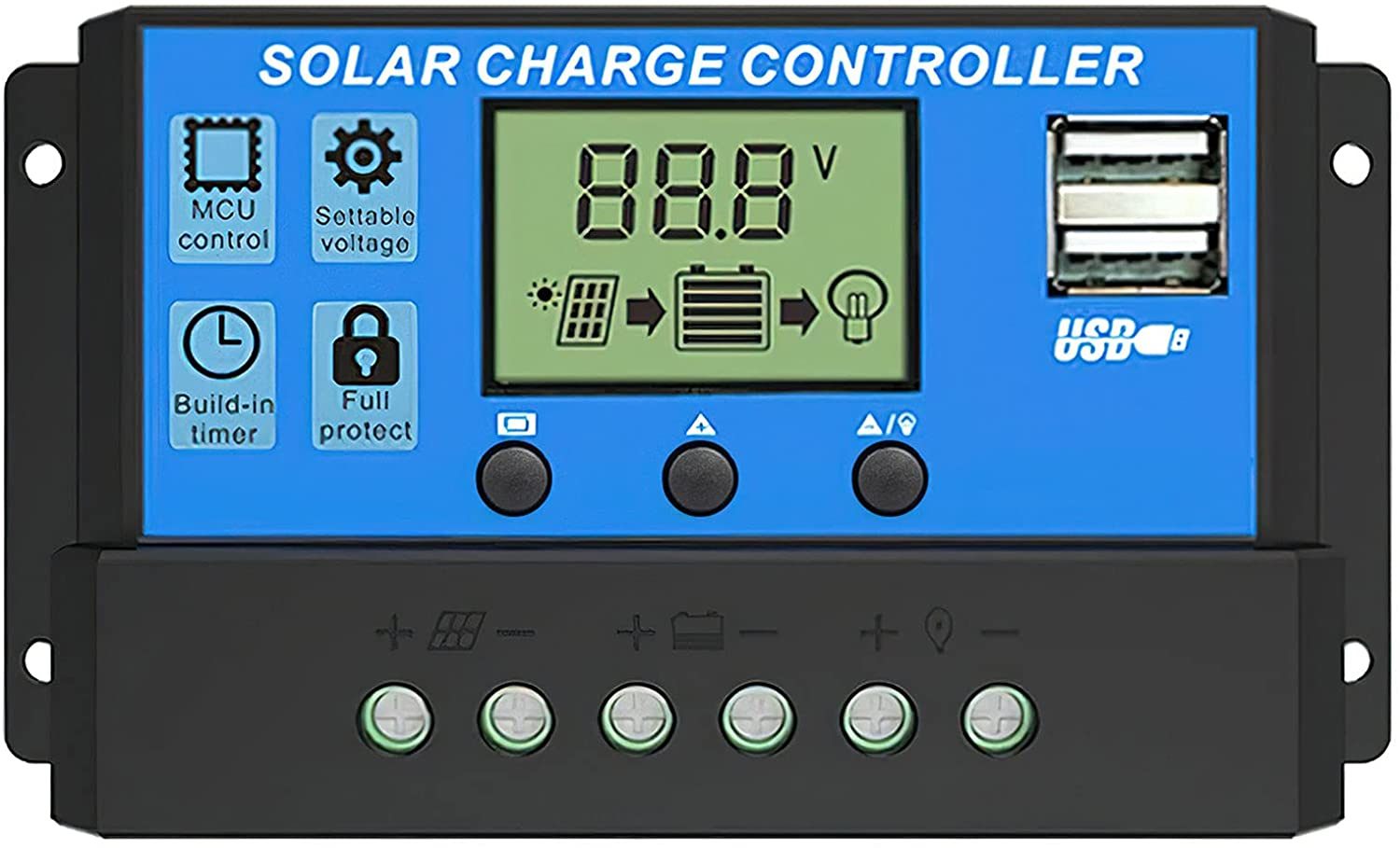

New 30A Solar charge controller with big LCD display , intelligent charge technology

With USB charge caution

With DC function

Features:
* Industrial-grade microprocessor control
* 12V and 24V can be adaptive
* With the charging over current protection function
* The controller will automatic reduce the charger current
* With the solar reverse polarity protection
* With the over temperature protection
* With DC power supply function
* Can Be connected DC energy-saving lamps
* Wall hanging case
* Application for Off-grid solar power system

This is a Settable Charge Controllers:
* Floating charge Voltage(HVD 13.3V-15V)
* Recovery after under Voltage(LVD 11V-13.5V)
* Under Voltage protection (RVD 9V-12.3V)
* Load Mode(24hours,1-23hours,0hour)
* Battery Option (GEL,LEAD-ACID,FLOODED)

Specifications:
* Charge Control Mode: PWM
* USB : 5V 3A
* Rated Current : 30A/24V
* Rated voltage: 12V/24V Automatic Identification
* Max. PV Input Power:
* 30A: 390W (12V) 780W (24V)
* Charge and discharge voltage drop: 0.2V|<0.1V
* Dimension: 138 x 70 × 41.5 mm
* Net Weight: 320g

Package Includes:
1 x 30A Solar Controller USB
1 x Manual

If you experience any issues with products or service, please contact us and we will try our very best to resolve them.

Dispatch will be within one working day upon receipt of payment.
