Solar Cables 4M Solar Panel Extension Cable In China

From Great Range Products

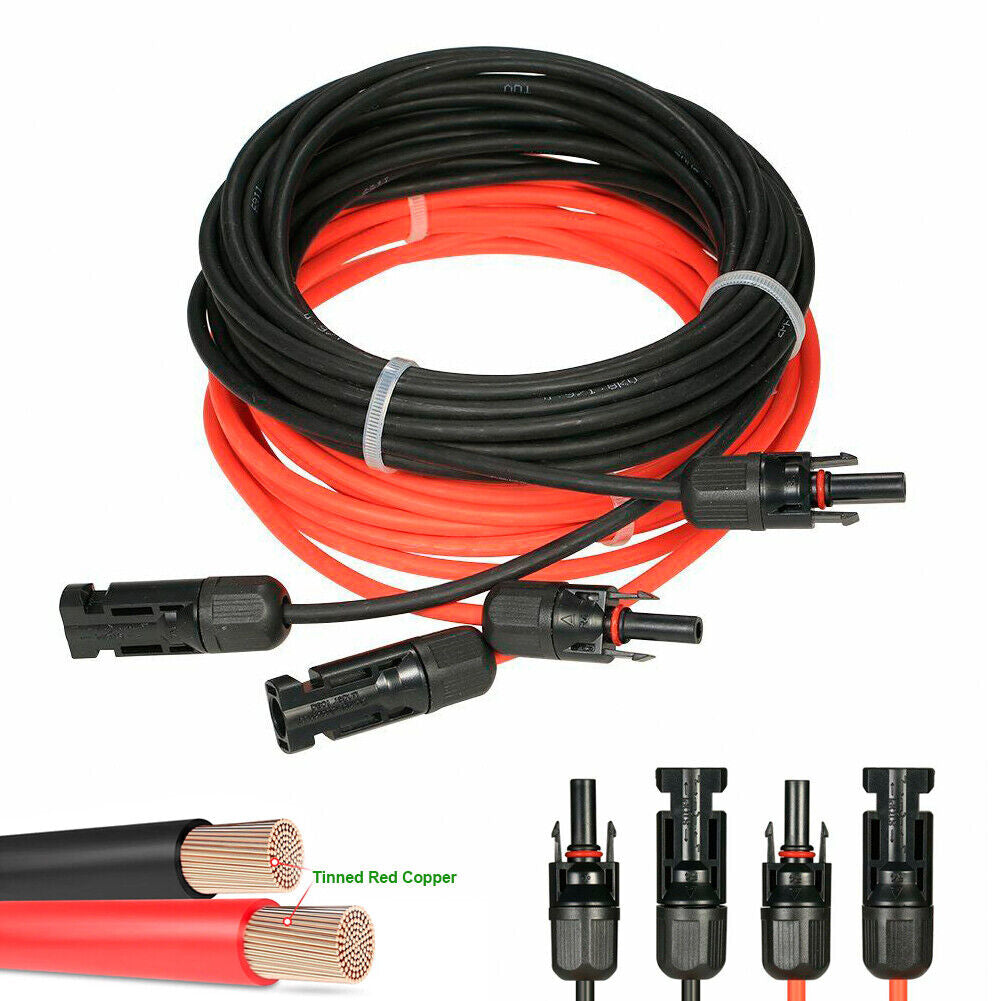

Solar Cables 4M Solar Panel Extension Cable
12 Month Warranty

This 4M Solar Panel Extension Cable is made of tinned copper wire and MC4 connectors. MC4 Solar Panel Extension Cable is waterproof, dust-proof, UV resistant, and flame retardant. Solar Panel Cable is suitable for solar power stations, PV connectors, and PV junction boxes.

Features:

*Flame retardant Solar Panel Cable 4m long
*Two MC4 connectors (male and female)
*High current carrying capacity (55A)
*Red and Black Extension Cable Dust-proof and UV resistant
*High Current Solar Cable Double insulation
*Weatherproof Solar Cable Flame retardant
*12Awg Solar Cable All-weather adaptability
*Good abrasion resistance
*Excellent softness & stripping performance

Specifications:

4M Solar Panel Extension Cable
Waterproof: Yes
Weather resistance: UV
Number of cores: 2
Sheath Material: PE
Core material: Copper
Sheath Thickness: 3.5mm
Outer diameter of wire: 6 (mm)
Wire Length: 4 (m)
Cross Section Area: approx. 6 (mm2)
Interface Type: DC AC
Wire Gauge: 13Awg
Rated voltage: DC: 1.5kv AC U. / U: 0.6 / 1kv
Rated Current: 55A
Colour: Red & Black

Package Contents:

2 * Solar Panel Extension Cable
