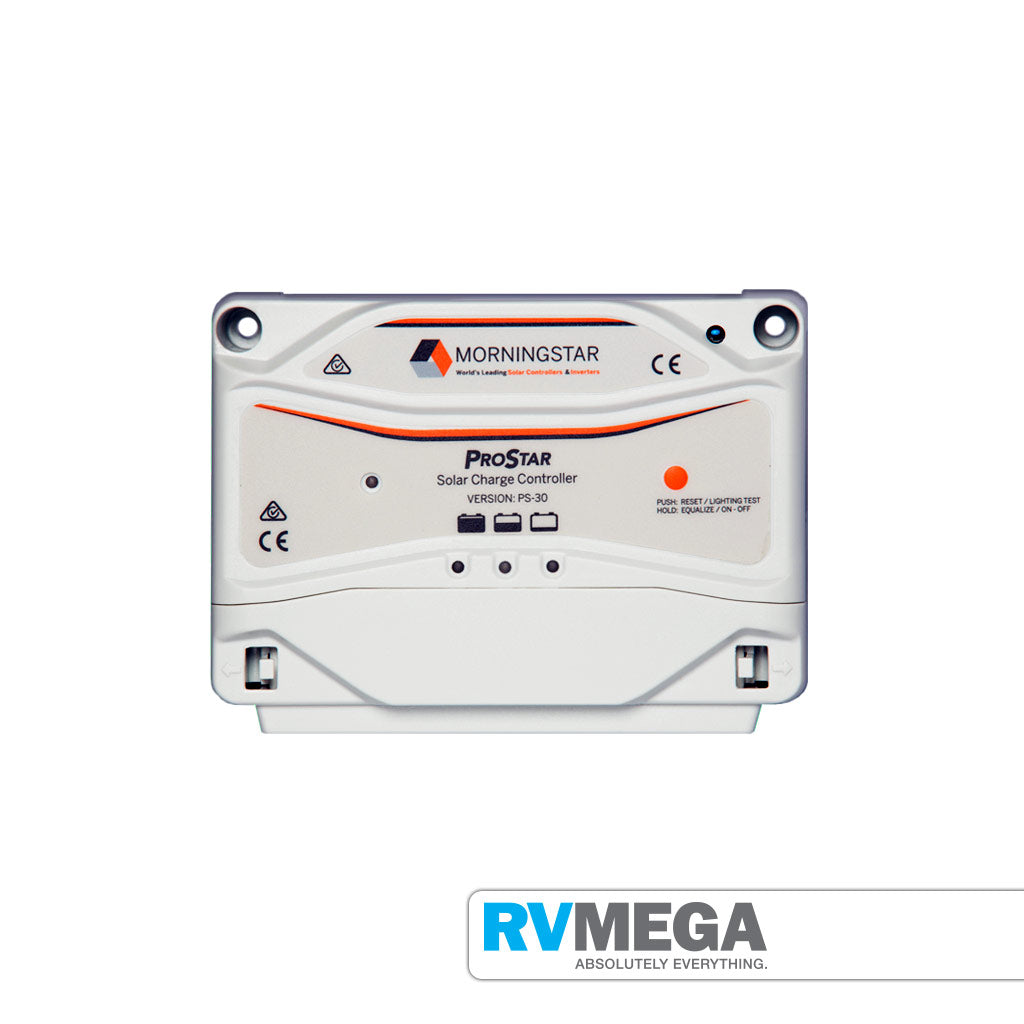

Morningstar Prostar Mid-Range 4-Stage PWM Charge Controllers 12V/24V Very Cheap Pice

Morningstar ProStar is regarded as the world’s leading mid-range solar controller for both professional and consumer applications. Morningstar’s second generation ProStar PWM solar controllers set new standards for reliability with their new innovative self-diagnostic circuitry and system design. Adopting 100% solid state innovation and low voltage disconnect a standard, the ProStar is the ultimate set and forget do it right the first time solar controller!

Specifications

• Rated Solar Current: 30a
• Rated Load Current: 30a
• System Voltage: 12/24v
• Positive Ground: Yes
• Remote Temp Probe: Yes

Battery Voltage Set Points

• Regulation Voltage GEL: 14.0v
• Float Voltage GEL: 13.7v
• Equalisation Voltage GEL: n/a
• Load Disconnect GEL: 11.4v

• Load Reconnect GEL: 12.6v

• Regulation Voltage Sealed: 14.15v

• Float Voltage Sealed: 13.7v
• Equalisation Voltage Sealed: 14.35v
• Load Disconnect Sealed: 11.4v

• Load Reconnect Sealed: 12.6v

• Regulation Voltage Flooded: 14.4v

• Float Voltage Flooded: 13.7v
• Equalisation Voltage Flooded: 14.9/15.1
• Load Disconnect Flooded: 11.4
• Load Reconnect Flooded:12.6
