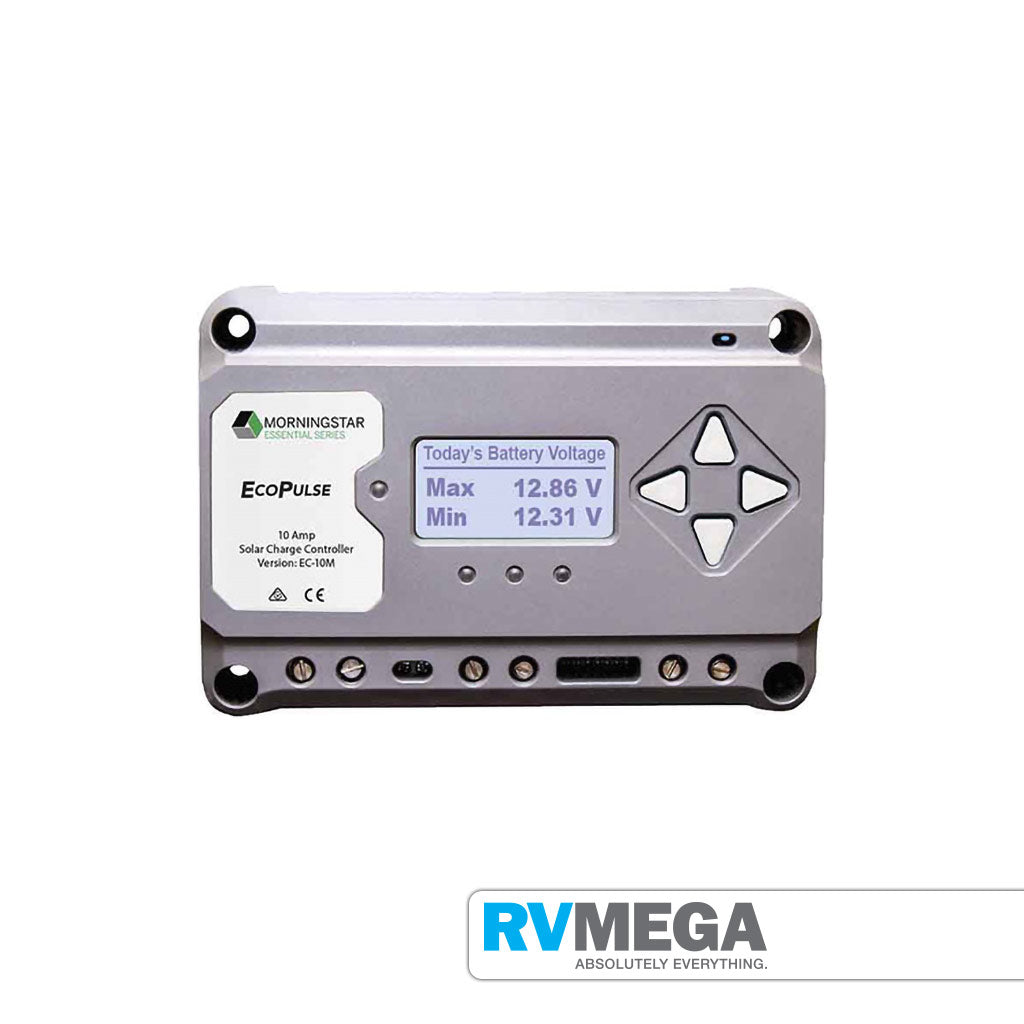

Morningstar Ecopulse PWM 10 Amp Solar Controller 12/24V For Nice

The EcoPulse is a pulse width modulation (PWM) solar charge controller within Morningstar’s Essential Series™ of products which provides essential off-grid battery regulation functions. This controller is easy to use, and designed for residential and leisure consumer applications.* Metered and non-metered versions of this product are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems.

Dimensions

• W153 x H105 x D55mm

Features

• High Reliability Conformally coated circuit board and corrosion resistant terminals.
• Robust Thermal Design Extruded aluminum heatsink dissipates heat quickly withoutusing cooling fans.
• Durable Casing High strength polycarbonate case.
• LED Fault Indications Alert when short circuit, over current, high voltage, and othererror conditions take place.
• Automatic Solar Based Lighting Control Field adjustable dusk ‘til dawn setting.
• Adjustable Charge Settings Seven presets and a custom setting can be set via DIP Switches orby the meter display buttons.
• Adjustable Load Control Load control can be adjusted via meter display.

Specifications

• Nominal Battery Voltage 12V or 24V auto-detect
• Battery Voltage Range 10 – 35 V
• Voltage Accuracy <= 0.1% +/- 50mV
• Max Battery Current 10 Amps
• Max PV Open Circuit Voltage (VOC) 60 Volts
• Load Current Rating 10 Amps
• Self Consumption <15mA; <20mA (meter)

• Transient Surge Protection 1500 Watts (solar, battery, load)

• Environmental

• Operating Temperature Range -40C to +45C

• Humidity 100% Non – condensing

• Tropicalization Conformal coating, marine-rated terminals

• Mechanical

• Weight 0.4 kg

• Enclosure IP20, Type 1
